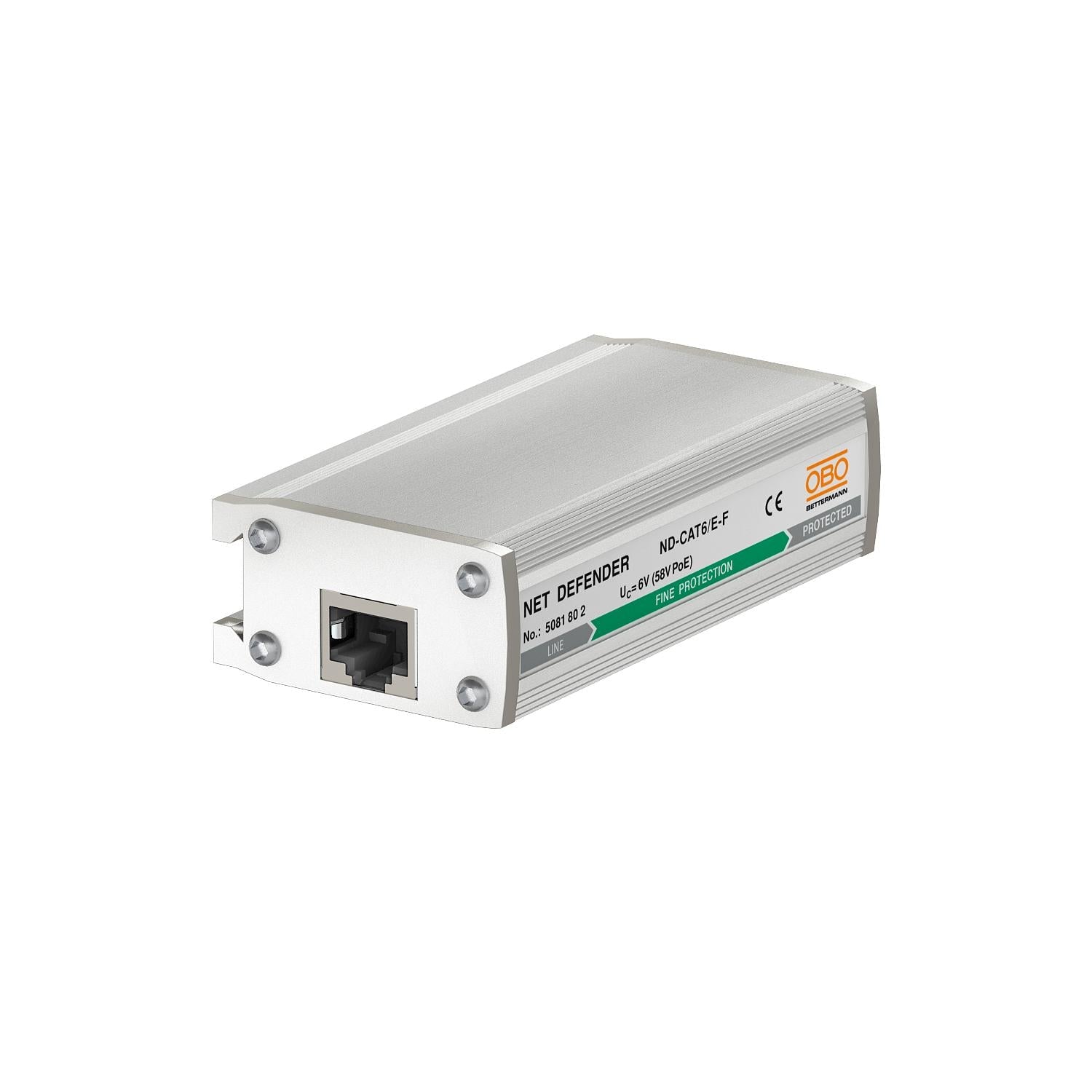

Surge protection for high-speed networks up to 1 GBit (Class ND-CAT6/E-F) OBO Type 5081802

Data cable protection device for high-speed networks
• High-quality RJ45 sockets
• Low protection level at high current load
• Earthing via DIN rail or connection cable
• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3
• Tested transmission quality in networks up to 1 GBit/s (Class E) or CAT6
• Fast installation through plug-in version
• Incl. DIN rail fastening set and earthing cable

Application example: 1 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces
