OBO BETTERMANN

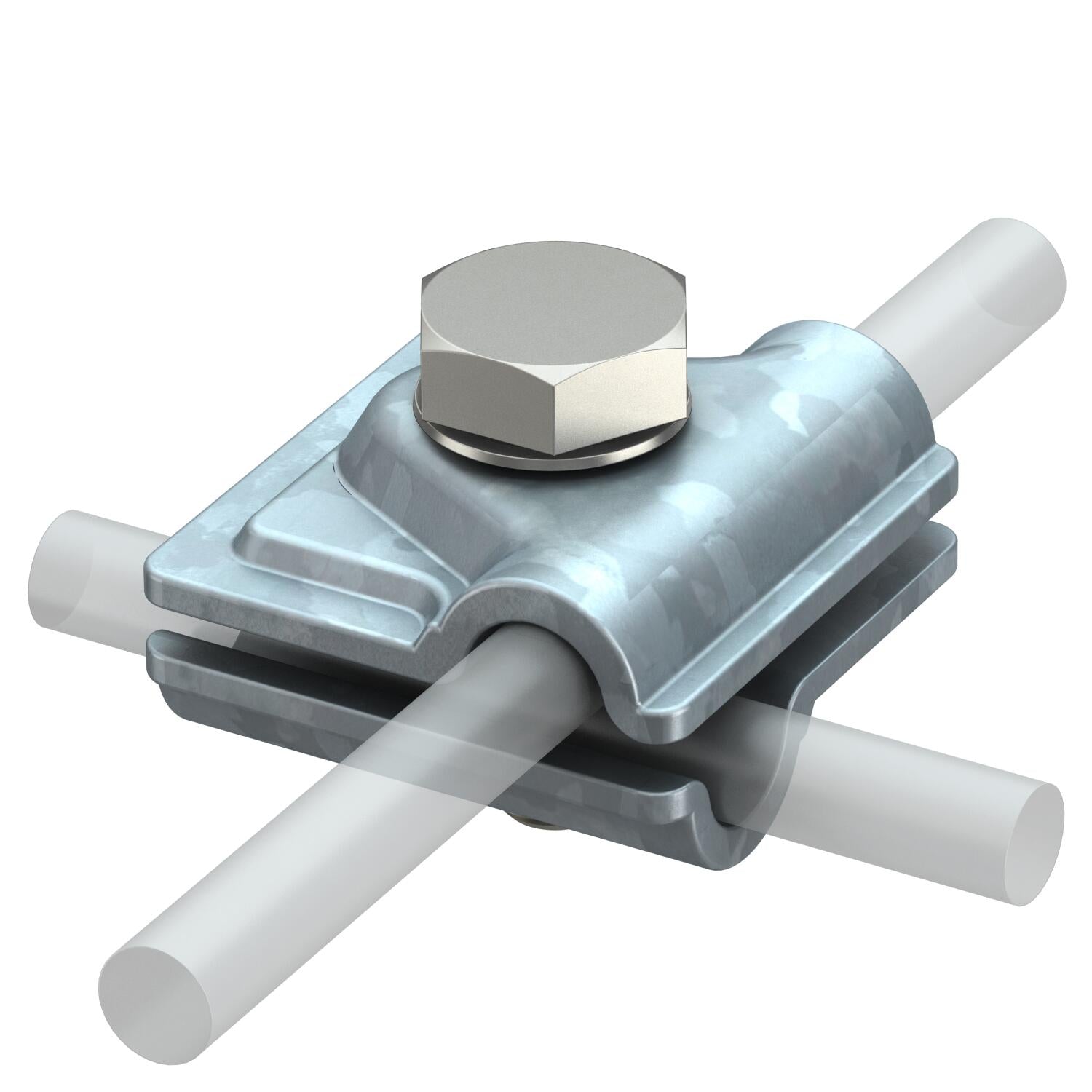

Vario quick connector FT
Vario quick connector FT
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Couldn't load pickup availability
- For T, cross and parallel connectors
- Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel
- Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data
| Dimension | 40x40mm |
|---|---|
| Dimension A | 40 mm |
| Fit | Rd 8-10 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | H/100 kA |
| Material | Steel |
| Round conductor diameter, conductor 1, max. | 10 mm |
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
|---|---|
| Round conductor diameter, conductor 2, min. | 8 mm |
| Short-circuit current (50 HZ)(1 s;≤300°C) | 5,6 kA |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Surface | Hot-dip galvanised |
| Type of connector | Multipurpose connection clamp |
| Type of fastening screw | Hexagonal bolt |
